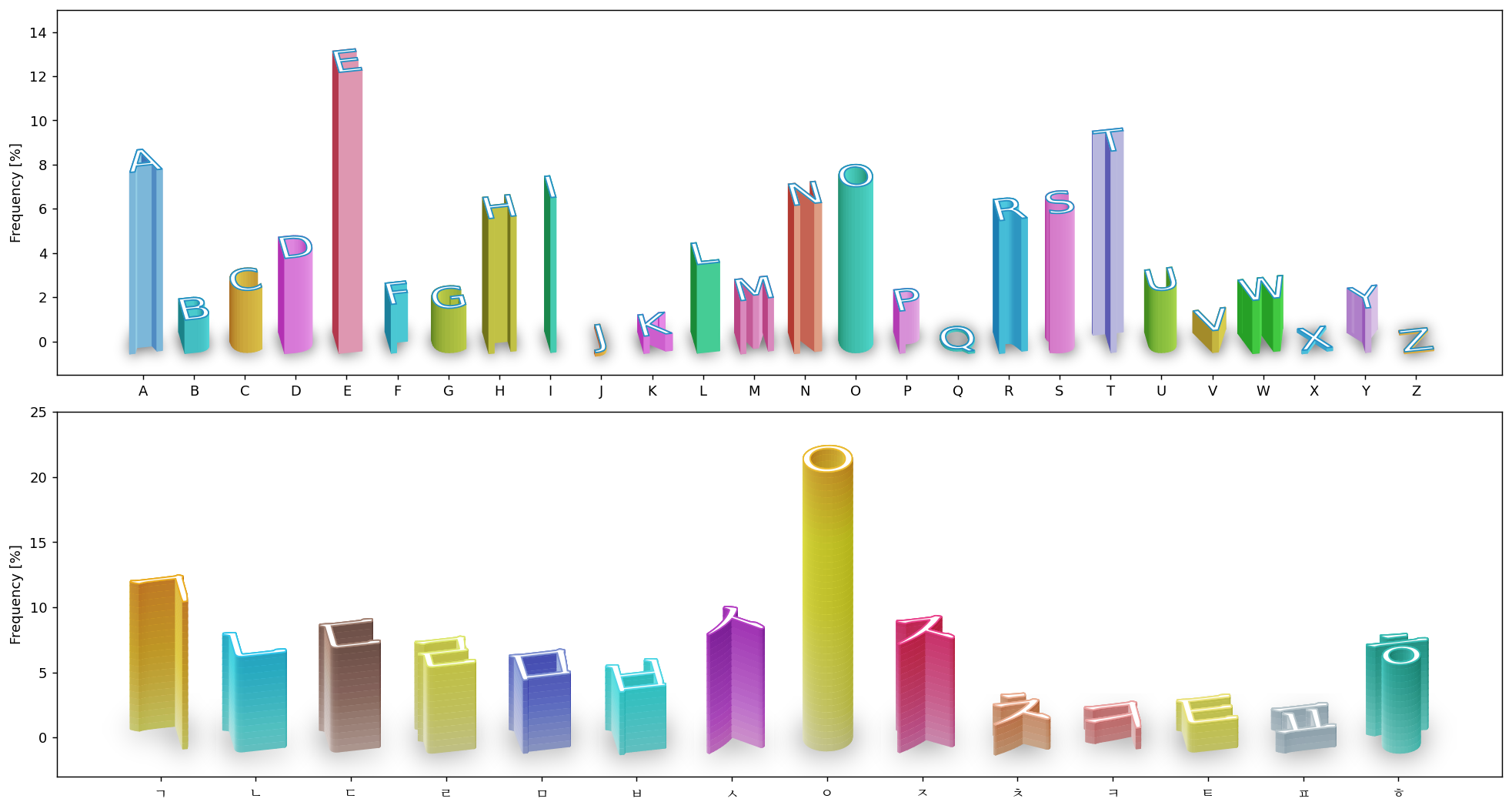

We will creat plot of alphabet frequency. We will use mpl-poormans-3d package. The package can give your 2d plot some (but limited) 3d feel.

Code
import numpy as np
from pathlib import Path
from matplotlib.font_manager import FontProperties

from matplotlib.colors import LightSource
from mpl_poormans_3d import BarToCharPrism
import mpl_visual_context.patheffects as pe
import mpl_visual_context.image_effect as ie

import matplotlib.pyplot as plt

from SecretColors import Palette

fig, axs = plt.subplots(2, 1, num=1, clear=True, figsize=(15, 8), layout="constrained")

# alphabet frequency data from wikipedia : https://en.wikipedia.org/wiki/Letter_frequency

abcd = [chr(ord("A") + i) for i in range(26)]  # A - Z
freq = [8.2, 1.5, 2.8, 4.3, 12.7, 2.2, 2.0, 6.1, 7.0, 0.15, 0.77, 4.0, 2.4, 6.7, 7.5, 1.9,
        0.095, 6.0, 6.3, 9.1, 2.8, 0.98, 2.4, 0.15, 2.0, 0.074]

ax = axs[0]

x = np.arange(len(abcd))
ax.bar(x, freq)
ax.set_xticks(x, abcd)
ax.set_ylim(-1.5, 15)
ax.set_ylabel("Frequency [%]")

ls = LightSource(azdeg=25+90)

fp = FontProperties("sans serif")

import seaborn as sns
cc = sns.color_palette("husl", 26)

rs = np.random.RandomState(8)
idx = rs.choice(len(cc), len(cc), replace=False)
cc = np.array(cc)[idx]

for p, fc, c in zip(ax.patches, cc, abcd):
    # p.set_fc(color)
    bar_to_prism = BarToCharPrism(ls, c,
                                  ratio=0.6,
                                  rotate_deg=10,
                                  fraction=0.5,
                                  scale=1.2,
                                  # fontprop=fp,
                                  distance_mode=np.mean)

    p.set_path_effects([#pe.FillOnly(),
        (bar_to_prism.get_pe_face(0)
         | pe.FillColor("k")
         | pe.ImageEffect(ie.Pad(20) | ie.Fill("k") | ie.GaussianBlur(5))),
        pe.FillColor(fc) | bar_to_prism,
        (bar_to_prism.get_pe_face(1)
         | pe.FillColor("w")
         ),
    ])

# from https://story.pxd.co.kr/958, w/o double consonant
hangul_consonant = "ㄱㄴㄷㄹㅁㅂㅅㅇㅈㅊㅋㅌㅍㅎ"
hangul_freq = [11.3, 7.3, 8.0, 6.6, 5.6, 4.8, 9.1, 21.4, 8.3, 2.3, 1.6, 2.2, 1.5, 6.8]

ax = axs[1]

import mplfonts
from mplfonts.conf import FONT_DIR # , RC_DIR
from pathlib import Path
# fname = Path(FONT_DIR) / "NotoSansMonoCJKsc-Regular.otf"
fname = Path(FONT_DIR) / "NotoSerifCJKsc-Regular.otf"
# fname = Path(FONT_DIR) / "SourceHanSerifSC-Regular.otf"
fp = FontProperties(fname=fname)

x = np.arange(len(hangul_consonant))
ax.bar(x, hangul_freq)
ax.set_xticks(x, hangul_consonant, fontproperties=fp)
ax.set_ylim(-3, 25)
ax.set_ylabel("Frequency [%]")

ls = LightSource(azdeg=25+90)

import seaborn as sns

palette = Palette("material")
cnames = list(c for c in palette.colors.keys() if c not in ["black", "white"])
rs = np.random.RandomState(8)
cnames = rs.choice(cnames, len(cnames), replace=False)

for p, cn, c in zip(ax.patches, cnames, hangul_consonant):
    cc = [palette.get(cn, shade=shade) for shade in np.linspace(20, 90, 50)]
    segment_params = (ax, 25, cc, None)

    bar_to_prism = BarToCharPrism(ls, c,
                                  ratio=0.6,
                                  rotate_deg=10,
                                  fraction=0.5,
                                  scale=1.2,
                                  fontprop=fp,
                                  segment_params=segment_params,
                                  distance_mode=np.mean)

    p.set_path_effects([#pe.FillOnly(),
        (bar_to_prism.get_pe_face(0)
         | pe.FillColor("k")
         | pe.ImageEffect(ie.Pad(20) | ie.Fill("k") | ie.GaussianBlur(10))),
        pe.FillColor(fc) | bar_to_prism,
        (bar_to_prism.get_pe_face(1)
         | pe.FillColor("w")
         ),
    ])

plt.show()

mpl-poormans-3d is available at github. It can be installed via

pip install mpl-poormans-3d

We will start with a data.

import numpy as np
from pathlib import Path
import matplotlib.pyplot as plt
# alphabet frequency data from wikipedia : https://en.wikipedia.org/wiki/Letter_frequency

abcd = [chr(ord("A") + i) for i in range(26)]  # A - Z
freq = [8.2, 1.5, 2.8, 4.3, 12.7, 2.2, 2.0, 6.1, 7.0, 0.15, 0.77, 4.0, 2.4, 6.7, 7.5, 1.9,
        0.095, 6.0, 6.3, 9.1, 2.8, 0.98, 2.4, 0.15, 2.0, 0.074]

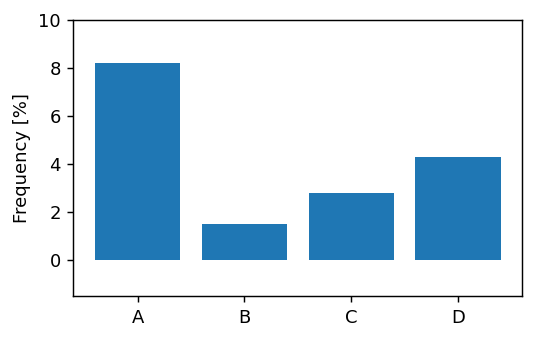

For the clairty, we will create a sample plot focusing on the first 4 bars. We adjusted y-range also to have enough room for 3d effects.

fig, ax = plt.subplots(1, 1, num=1, clear=True, figsize=(4, 2.5), layout="constrained")

x = np.arange(len(abcd))
ax.bar(x, freq)
ax.set_xticks(x, abcd)
ax.set_ylabel("Frequency [%]")
ax.set_xlim(-0.6, 3.6)
ax.set_ylim(-1.5, 10)

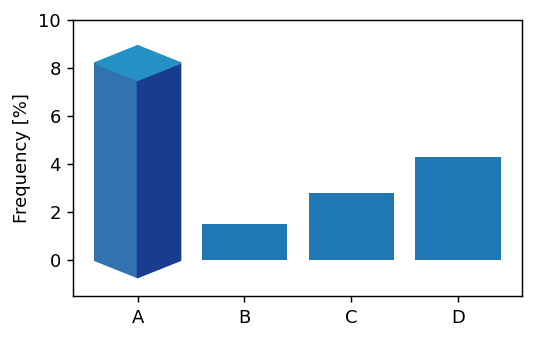

mpl-poormasn-3d provide a way to convert your bars to 3d. We will first try BarToPrism class. You create it by setting the lightsource and number of vertices of the shape. Its instance is callable object and can be used as a patheffect. The lightsource should be an instance of matplotlib.colors.LightSource.

from matplotlib.colors import LightSource
from mpl_poormans_3d import BarToPrism

lightsource = LightSource(azdeg=25+90)

p = ax.patches[0]

numVertices = 4
bar_to_prism = BarToPrism(lightsource, numVertices)

p.set_path_effects([bar_to_prism])

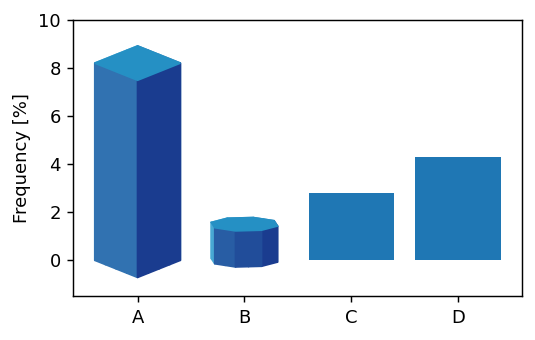

BarToPrism takes several keyword arguments. ratio is for aspect ratio, i.e., smaller ratio will give you flat shape. The meaning of scale and rotate_deg should be self-explanatory.

p = ax.patches[1]

numVertices = 8
bar_to_prism = BarToPrism(lightsource, numVertices, ratio=0.2, scale=0.8, rotate_deg=30)

p.set_path_effects([bar_to_prism])

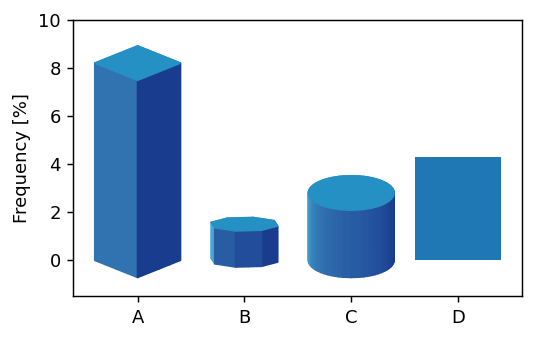

BarToCylinder will creat a cylinder.

from mpl_poormans_3d import BarToCylinder
p = ax.patches[2]

bar_to_prism = BarToCylinder(lightsource, ratio=0.4)

p.set_path_effects([bar_to_prism])

BarToCharPrism will creat a 3d-bar using the character path and BarToPathPrism will do the same using an arbitrary path.

from mpl_poormans_3d import BarToCharPrism
p = ax.patches[3]

bar_to_prism = BarToCharPrism(lightsource, "d")

p.set_path_effects([bar_to_prism])

The instance of BarToPrism and its siblings have a get_pe_face method which returns a patheffect that only show the face of the prism at a given position. 0 means bottom, 1 means top. Note that an instance of BarToPrism renders multiple paths and cannot be combined with other patheffects. On the other hand, return value of get_pe_face method can be combine with other patheffects, e.g., patheffects from mpl-visual-context.

import mpl_visual_context.patheffects as pe

bar_to_prism = BarToCharPrism(lightsource, "d")

p.set_path_effects([
    bar_to_prism,
    bar_to_prism.get_pe_face(1) | pe.FillColor("w") | pe.StrokeColor("r")
])

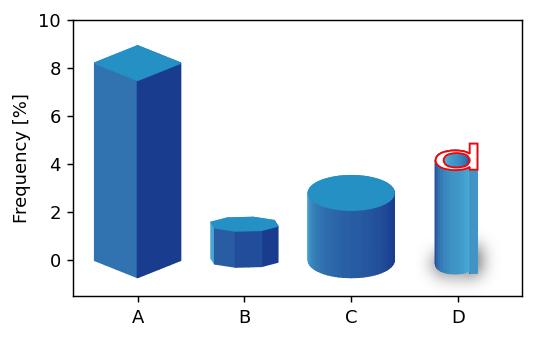

We can further add a simple shadow to the bar.

import mpl_visual_context.image_effect as ie

blur_effect = pe.ImageEffect(ie.Pad(20) | ie.Fill("k") | ie.GaussianBlur(5))

p.set_path_effects([
    bar_to_prism.get_pe_face(0) | pe.FillColor("k") | blur_effect,
    bar_to_prism,
    bar_to_prism.get_pe_face(1) | pe.FillColor("w") | pe.StrokeColor("r")
])

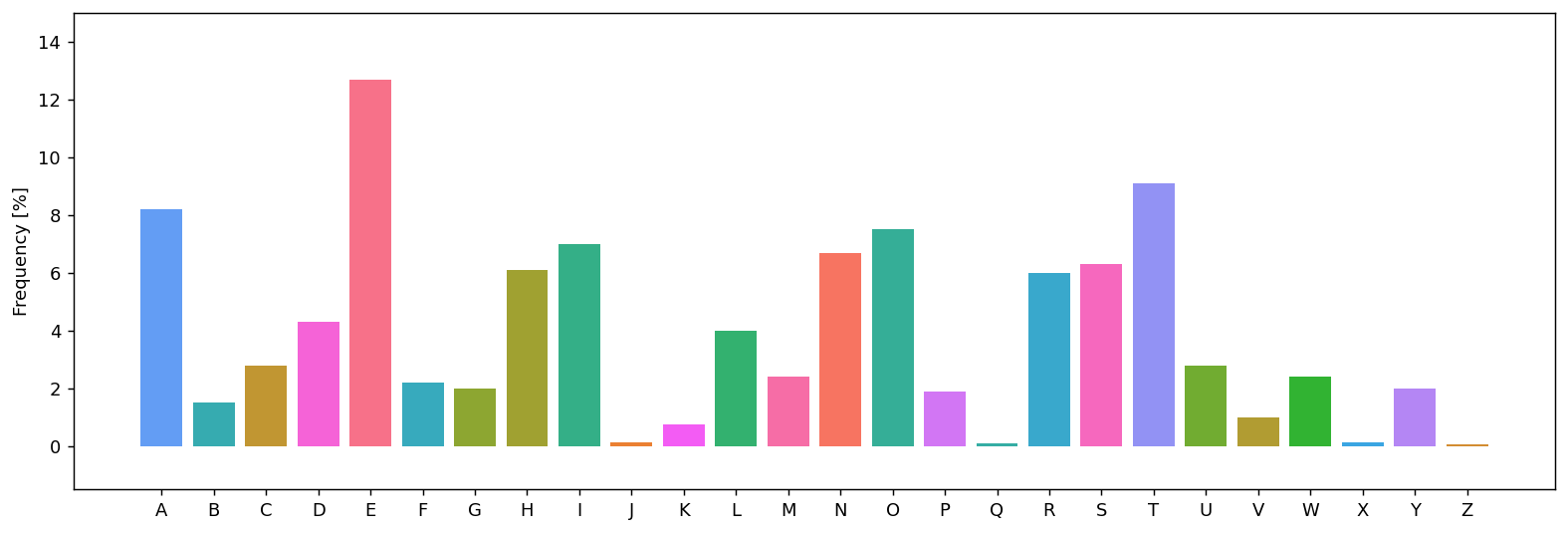

Now, let’s create a plot of full character set and show alphabet frequency. We will set the facolor of bars using the te husl color palette.

fig, ax = plt.subplots(1, 1, num=2, clear=True, figsize=(12, 4), layout="constrained")

x = np.arange(len(abcd))
ax.bar(x, freq)
ax.set_xticks(x, abcd)
ax.set_ylabel("Frequency [%]")

import seaborn as sns
cc = sns.color_palette("husl", 26)

rs = np.random.RandomState(8)
idx = rs.choice(len(cc), len(cc), replace=False)
cc = np.array(cc)[idx]

for p, fc in zip(ax.patches, cc):
    p.set_fc(fc)

ax.set_ylim(-1.5, 15)

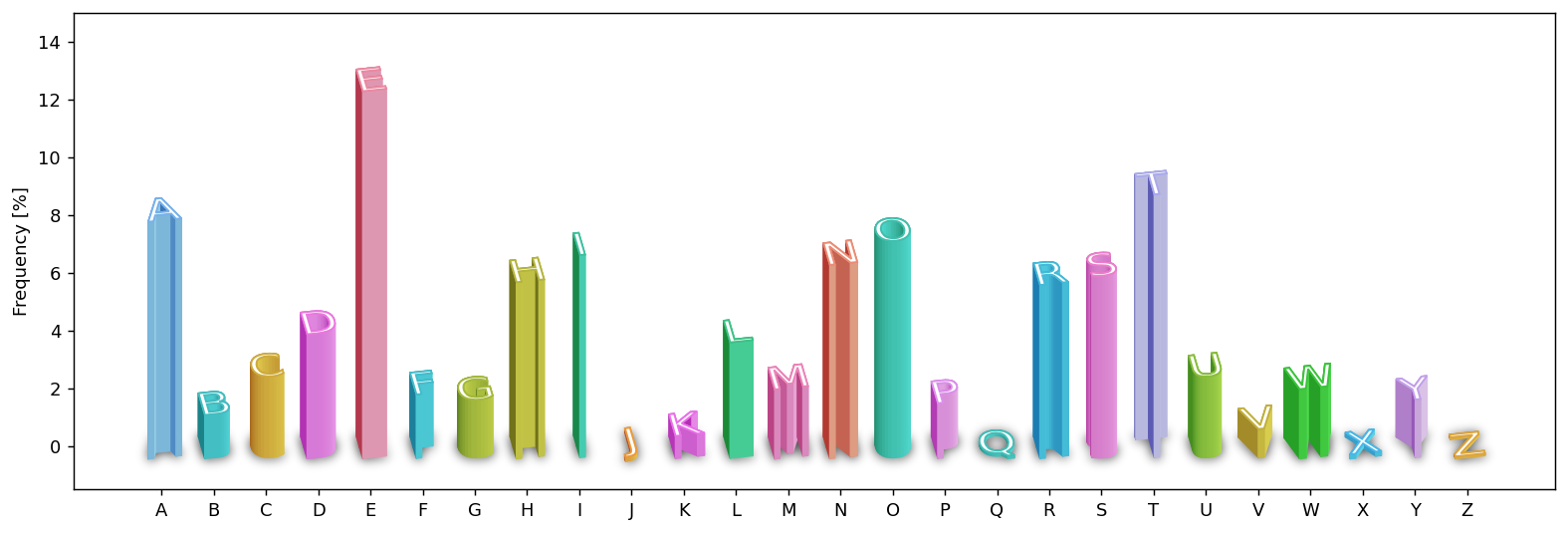

We will use BarToCharPrism to represent the alphabet. We will add some shadow and make the top face white.

lightsource = LightSource(azdeg=25+90)
blur_effect = pe.ImageEffect(ie.Pad(10) | ie.Fill("k") | ie.GaussianBlur(3))

for p, fc, c in zip(ax.patches, cc, abcd):
    bar_to_prism = BarToCharPrism(lightsource, c,
                                  ratio=0.6,
                                  rotate_deg=10,
                                  fraction=0.5,
                                  scale=1.2,
                                  distance_mode=np.mean)

    p.set_path_effects([#pe.FillOnly(),
        (bar_to_prism.get_pe_face(0) | pe.FillColor("k") | blur_effect),
        bar_to_prism,
        (bar_to_prism.get_pe_face(1) | pe.FillColor("w"))
    ])

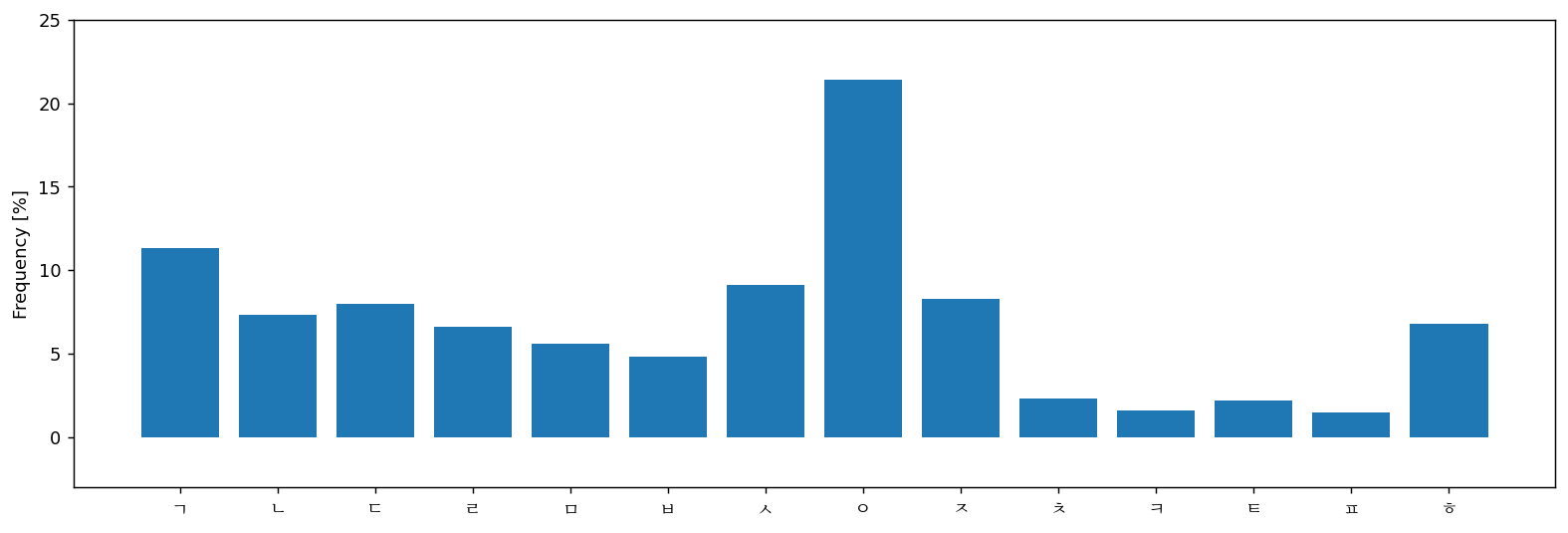

We will create another plot, showing frequncy of Hangul characters (Korean characters) We need specify a font with Korean characters. For the example, we will us korean fonts included in the mplfoints package, but any Korean font should work.

from https://story.pxd.co.kr/958, w/o double consonant

hangul_consonant = "ㄱㄴㄷㄹㅁㅂㅅㅇㅈㅊㅋㅌㅍㅎ"
hangul_freq = [11.3, 7.3, 8.0, 6.6, 5.6, 4.8, 9.1, 21.4, 8.3, 2.3, 1.6, 2.2, 1.5, 6.8]

fig, ax = plt.subplots(1, 1, num=3, clear=True, figsize=(12, 4), layout="constrained")

from mplfonts.conf import FONT_DIR
from pathlib import Path
from matplotlib.font_manager import FontProperties

fname = Path(FONT_DIR) / "NotoSerifCJKsc-Regular.otf"
fp = FontProperties(fname=fname)

x = np.arange(len(hangul_consonant))
ax.bar(x, hangul_freq)
ax.set_xticks(x, hangul_consonant, fontproperties=fp)
ax.set_ylim(-3, 25)
ax.set_ylabel("Frequency [%]")

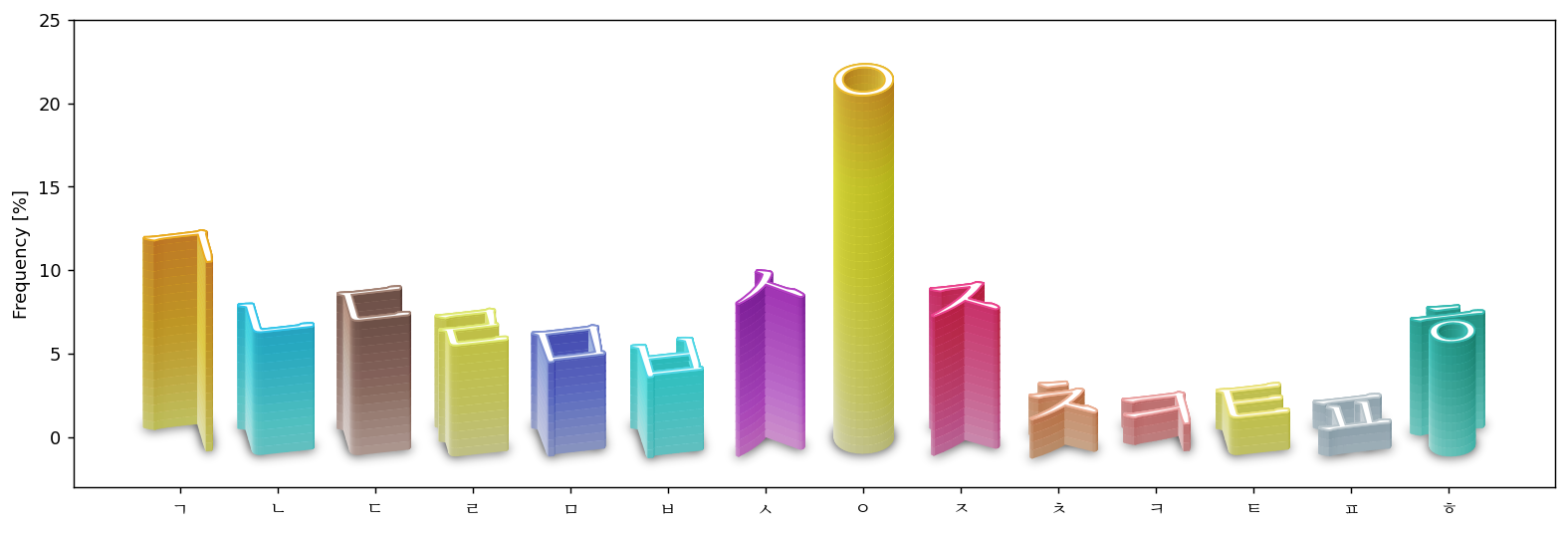

We want the prism to have varuing shades. For that, we will use material palette. We will pick up the palette from the SecretColors package althoug the original palette is from google’s matrial design.

Prism instances can be created using the semenet_params.

from SecretColors import Palette
import seaborn as sns

lightsource = LightSource(azdeg=25+90)

palette = Palette("material")
cnames = list(c for c in palette.colors.keys() if c not in ["black", "white"])
rs = np.random.RandomState(8)
cnames = rs.choice(cnames, len(cnames), replace=False)

blur_effect = pe.ImageEffect(ie.Pad(10) | ie.Fill("k") | ie.GaussianBlur(3))

for p, cn, c in zip(ax.patches, cnames, hangul_consonant):
    cc = [palette.get(cn, shade=shade) for shade in np.linspace(20, 90, 50)]
    segment_params = (ax, 25, cc, None)

    bar_to_prism = BarToCharPrism(lightsource, c,
                                  ratio=0.6,
                                  rotate_deg=10,
                                  fraction=0.5,
                                  scale=1.4,
                                  fontprop=fp,
                                  segment_params=segment_params,
                                  )

    p.set_path_effects([
        bar_to_prism.get_pe_face(0) | pe.FillColor("k") | blur_effect,
        bar_to_prism,
        bar_to_prism.get_pe_face(1) | pe.FillColor("w"),
    ])
